PCB板设计系统

对丰富的功能和最新PCB板技术的追求

CR-5000系列的核心——基板设计系统CR-5000/Board Designer，具备充实的布线、布线图的基本功能，能够提高基板设计人员的设计作业效率。 尤其是适用于高密度高速基板设计的布线命令和可以灵活编辑的布线图命令等，功能非常完善， 可以最大限度地提高现在的基板设计人员进行的高难度作业的效率。

为了在小型化、高密度化的基板上安装设计高速电路，基板设计人员必须在设计中考虑到各种电力制约（限制）。 如果采用Board Designer，对于指定等长布线或有最小布线长度限制的图面，可以自动创建迂回路径，并修正违反的图面。 也可以指定迂回形状（摺形、长号形）。而且还可以按照差动布线间隔对差动对中设定的正负信号进行布线。

这些只是Board Designer所具备的功能中的一小部分。满足所有设计需求的Board Designer的丰富功能和选购件群的详情，请浏览商品目录。

Board Design System

Full range of functions and the very latest circuit board technology

CR-5000 Board Designer, the circuit board design system at the heart of the CD-5000 series, has a full complement of basic functions for routing and art work, to make the design work of board designers more efficient. Including the routing commands, which can be used in high precision and high speed design operations, and the art work commands which allow flexible editing, Board Designer boasts a full range of functions that can make the difficult work of today's board designers more efficient to the maximum extent possible.

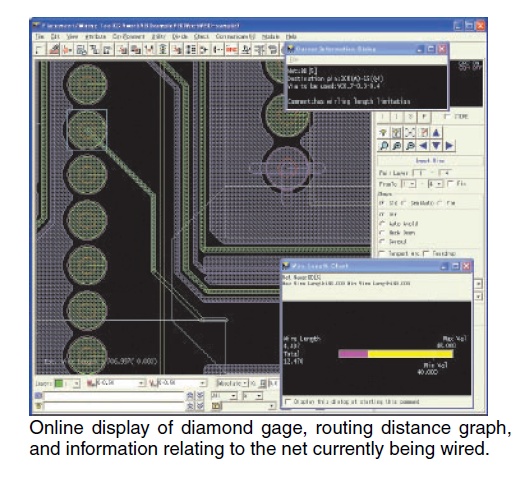

In order to carry out high speed circuits design on ever smaller and higher density boards, engineers have to take into account a variety of electrical constraints. With Board Designer, detour paths are automatically drawn up for patterns with isometric routing specifications and minimum routing length limits, and patterns which do not conform are corrected. The form of the detour (accordion, trombone) can also be specified. In addition, the negative and positive signals set in differential pairs can be wired at differential routing intervals.

This describes just a few of Board Designer's functions. See the catalog for more information on Board Designer's wide range of functions and options, meeting all your design needs.

CR-5000/Board Designer的优势，不仅在于其丰富的布线功能，还与前端“电路设计”和制造数据等PCB板设计的前后过程密切配合。 不仅从电路图指定元器件属性，还可以从电路图接收信息，或者进行电路/PCB板设计间的前向/后向反馈。

在PCB板设计中，沿用设计是一种重要的设计方法，既能保证可靠性，又能提高设计效率。CR-5000的设计环境， 既能保持电路设计PCB板设计的整合性，又能有效地进行沿用设计。
在基板设计中，沿用设计是一种重要的设计方法，通过使用已得到应用的设计，既能保证可靠性，又能提高设计效率。 CR-5000的整合设计环境，既能保持电路设计基板设计的整合性，又能有效地进行沿用设计。
【图像】把从电路图中选择的内容反映到PCB板上

Board Designer还可以将Gerber数据轻易变成Board Designer的数据（选购件）。因此费事地编辑Gerber数据可以转换为操作 Board Designer的数据了。
【图像】Gerber数据的读入与面数据转换

Board Designer的选购件Board Producer，通过创建和输出高质量的PCB板制造数据，防止在PCB板制造工序返工。 Board Designer是一种切实考虑到向制造工序输出高质量的制造数据的PCB板设计工具。
【图像】Board Producer的制造面板的拼板功能

Seamless Optimization of PCB Design Processes

The superiority of CR-5000 Board Designer does not just lie in its wealth of routing and art work functions. It shows its true worth in tight coordination with the processes that come before and after board design, such as the initial process of circuit design, and the compilation of manufacturing data.

Intimate coordination with circuit diagram data not only allows designation of components and transfer of attributes from the circuit diagram side, but, for example, also receiving information from the circuit diagram data for multiple destinations and designing them on one circuit board (option), as well as back and forward annotation between circuit and board design.
In board design, design reuse is an important design method which increases design efficiency while ensuring reliability through the use of designs with a proven record. CR-5000's integrated design environment allows the realization of efficient design reuse while maintaining the consistency of circuit and board design.

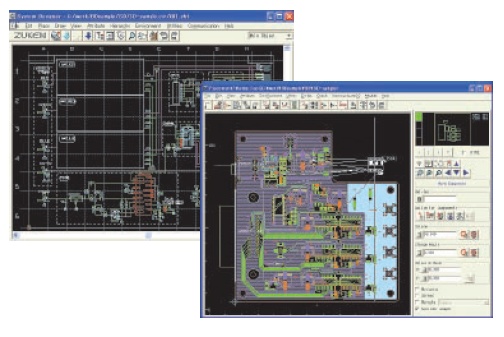

(Picture) Selection from the circuit diagram is reflected in the circuit board.

Also, with Board Designer, it is easy to use gerber data frequently used in transactions between manufacturers and to reuse existing design assets as Board Designer data (option). Gerber data can be easily compiled as Board Designer data by using special commands without time consuming editing operations.

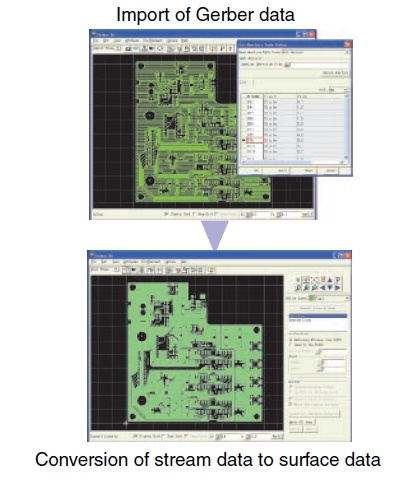

(Picture) Incorporation of gerber data and conversion of stream data to areal data

Board Producer, an option that comes with Board Designer, avoids reworking in the circuit board manufacturing process through the compilation and output of high quality board production data. Board Designer is a board design tool which has been designed to reliably output high quality manufacturing data to the manufacturing process.

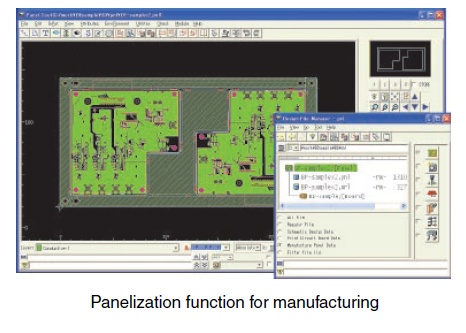

(Picture) Panelize function

在PCB板设计的所有设计周期中，准备通用的库数据和设计文件管理环境，对于旨在通过提供整合了从电路设计到制造设计的设计环境， 使PCB板设计的Q（质量）C（成本）D（设计期限）最优化的CR-5000的运用，是一个重要因素。CR-5000/Board Designer， 备有能够有效创建和维护库、CAD文件的实用程序。

●元器件库的整合管理功能

备有各种功能，包括可以一站式登录元器件的逻辑属性、引脚分配、门极信息、形状信息、电路图符号等的“Component Manager”， 搜索条件可以客制化的“LiveResearcher”，以及通过参量生形来提高元器件制作作业的效率，可以在多个网点有效利用库的库的对比、 复制、删除重复等。
【图像】Library Research与Library Viewer

●CAD文件管理员

System Designer、CR-8000/Design Gateway、Board Designer通用的专用文件管理员。可以根据设计阶段切换电路图、PCB板、面板的视图， 按照版数设置不同目录上的电路图和PCB板，对应分担设计中的母PCB板/子PCB板，对应连接制造面板/子PCB板。
【图像】树型视图显示与CAD文件管理员

Utilities to Support Design Environment

CR-5000 is designed to optimize quality, cost and time in circuit board design by providing a design environment which integrates the design process from circuit design to production design. Therefore, preparing the management environment for the shared libraries and data files for all the design cycles of board design is a major element in the operation of CR-5000. CR-5000 Board Designer has utilities for the efficient construction and maintenance of libraries and CAD files.

●Integrated management function of component libraries

Many functions are provided such as the Component Manager which allows one-stop registration of component logic attributes, pin layout, gate data, shape data, circuit diagram symbols etc, the Library Searcher which allows customization of search conditions, more efficient component drafting through shape generation by the parametric method, library comparison, copy and multiple delete functions which allow efficient utilization of the libraries at multiple locations, and other functions.

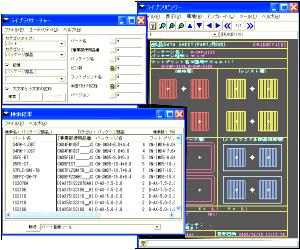

(Picture) Library Searcher and Library Viewer

●CAD File Manager

This is a dedicated file manager for System Designer, CR-8000 Design Gateway and Board Designer. It allows view switching between circuit diagrams, boards and panels in accordance with the design phase, setting of circuit diagrams and circuit boards from different directories for each version number, coordinating parent boards and child boards during shared design, and linking for production panels and child boards.

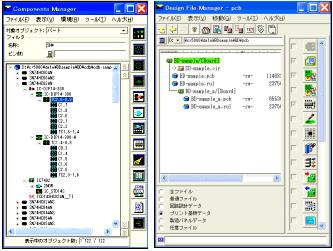

(Picture) Tree view display and CAD File Manager

Board Designer附加模块“Package Synthesizer”，是一种也适用于多晶片封装、晶片堆叠封装的封装设计系统， 也是一种Board Designer专用附加模块，整合了引线键合、倒装片、CSP、BGA、三维安装等先进封装设计所需的功能， 通过3D交互式显示的直观显像来提高封装设计效率。敬请垂询产品详情。

【图像】DRC/MRC:结合线间隙检验(3D显示)

Package Synthesizer, a Package Design System

Package Synthesizer, a Board Designer add-on module, is a system for package design which can be used for multi-die and stacked die package design. This Board Designer add-on module makes package design more efficient through the intuitive views it provides, using 3D interactive display, and integrates the functions necessary for advanced package design such as wire bond, flip chip, CSP, BGA and 3D mounting. Please contact us for more information.

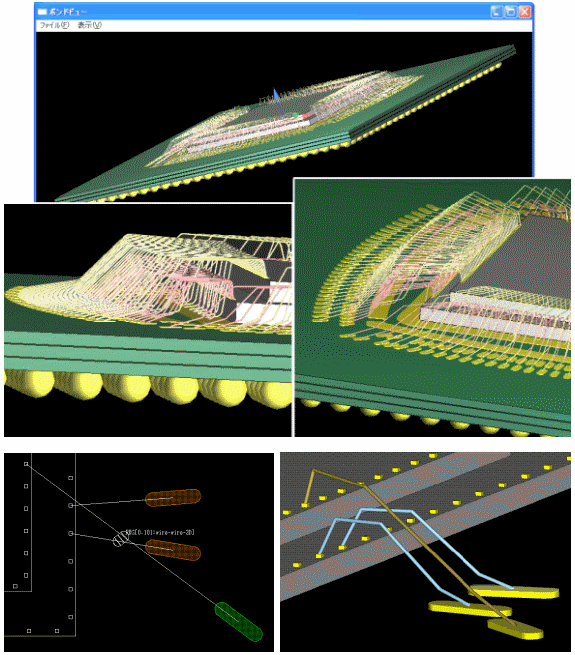

(Picture) : DRC/MRC: Bond wire clearance check (3D display)
